Medium High Drawer
Medium High Drawer
SKU:KSPMD
Couldn't load pickup availability
Description

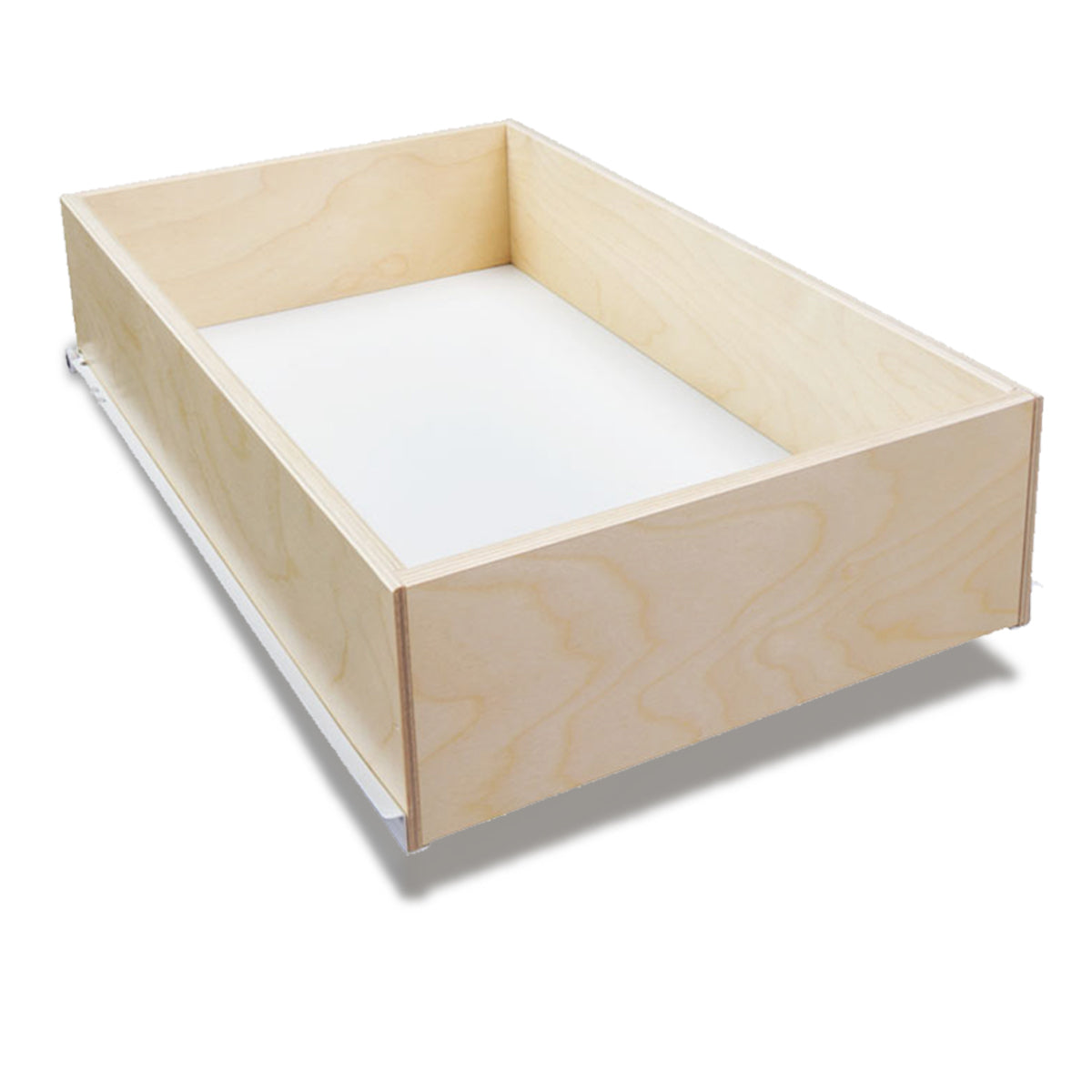

When you need a little height, our medium high shelf does the trick. Great for boxed foods in pantries, or if you just want to keep your plasticware more contained.
What's Included:
- Custom Pullout Shelf
- Complete set of the selected Slides
- Mounting Hardware for the selected Mounting Style
- 1 or 2 Door Protectors per shelf (under 19" wide gets 1)
- 10 Wood Mounting Screws per shelf (5/8" long)
Width & Depth Measuring
Width:
SEE GUIDE ➤The available space between the most narrow 2 points of your cabinet's opening, at the level the shelf will be installed. Between any protruding hinges, doors, face frames, etc. It is typical for the lower pullout shelf to be slightly narrow that the upper, due to the hinges usually only interfering with the bottom. If you have a Frameless Cabinet, you may need to deduct for the L Brackets used by the Base or Half Shelf Mounting Styles.
Depth:
SEE GUIDE ➤Select the Shelf Depth that would fit inside of your available cabinet interior depth, behind any doors or framing. This is the actual length of the pullout shelf. The Rear Socket Mounting Style may add 1/4" more to the Shelf Depth selection, so please allow for 1/4" Extra room when ordering to be safe.
Do not select the Depth size larger than your interior cabinet depth.
Mounting Styles
| Base Mount | Mounting on top of any existing surface, i.e. Bottom/Floor of cabinet, Full Fixed/Adjustable Shelf. |
| Half Shelf Mount | Utilizing the pesky Half Shelf in the back of the cabinet, or an existing shelf that's more than 2" shorter than the cabinet depth. |
| Side Mount | For mounting an upper shelf with no existing fixed/adjustable shelf. Would attach to the interior sidewalls using a form of Spacer or Wood Strip so the pullout can be narrow enough to slide through the opening. |
| Rear Socket Mount | Similar to the Side Mount, only the Rear of the shelf will be attached to the cabinet's back wall. |
| The Half Shelf, Side Mount, and Rear Sockets Mounting Styles all attach to the Face Frame or Sides of the cabinet on the front, the rear attachment is all that changes. | |
You can find more information on our different Mounting Styles HERE.
| Specifications | |
| Height | 4 7/8" Tall |
| Width | From 6" to 32" (1/16" increments) |
| Depth | From 11 3/4" to 25 3/4" (2" increments) |
| Capacity | 100 lbs. |
| Wood | 1/2" 9-Ply Birch sides / 1/4" MDF bottom |
| Finish | 2-Coat Clear Lacquer Finish |
| Joints | Rabbet corners / Dado bottom |
| Warranty | Lifetime / 5 Years with [BB] Full Extension slides ** |
If you have any questions on measuring, mounting, or ordering please emails us at Service@kitchenshelves.com or call us at 623-780-2555
